Maquinaria nueva
Venta de grupos electrogenos nuevos sin usar , año 2022, somos fabricantes , stock real , disponemos de servicio tecnico en toda españa, no dude en contactarnos

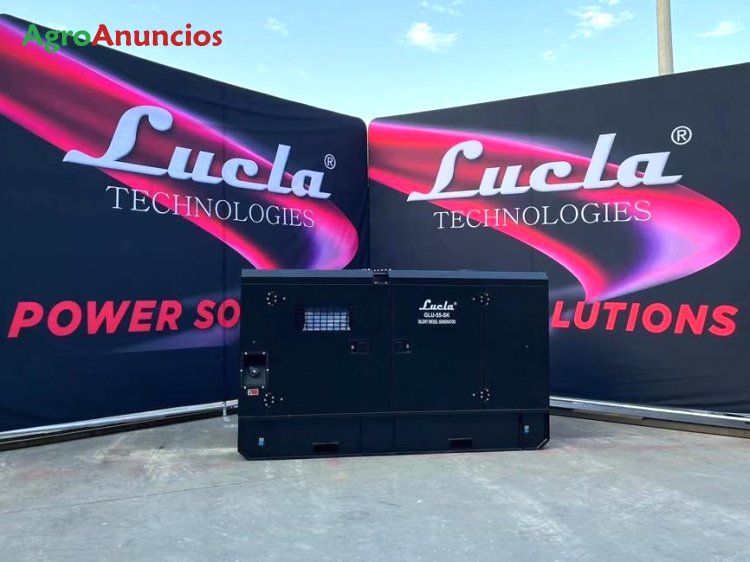

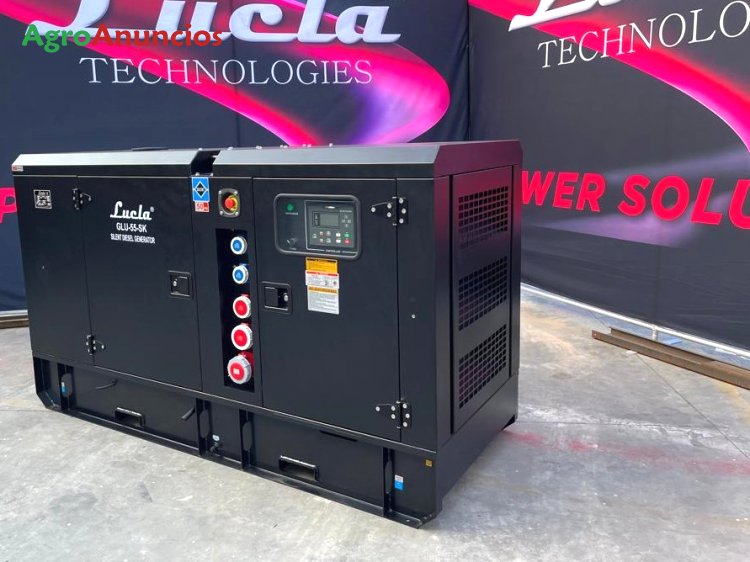

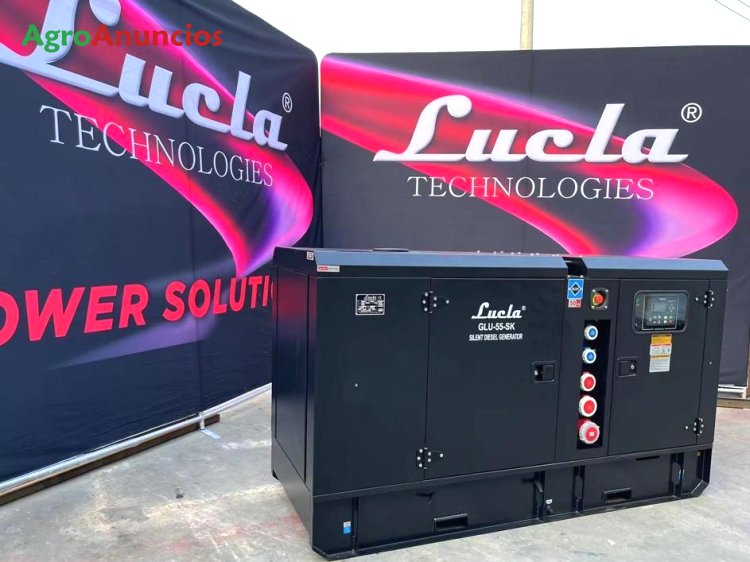

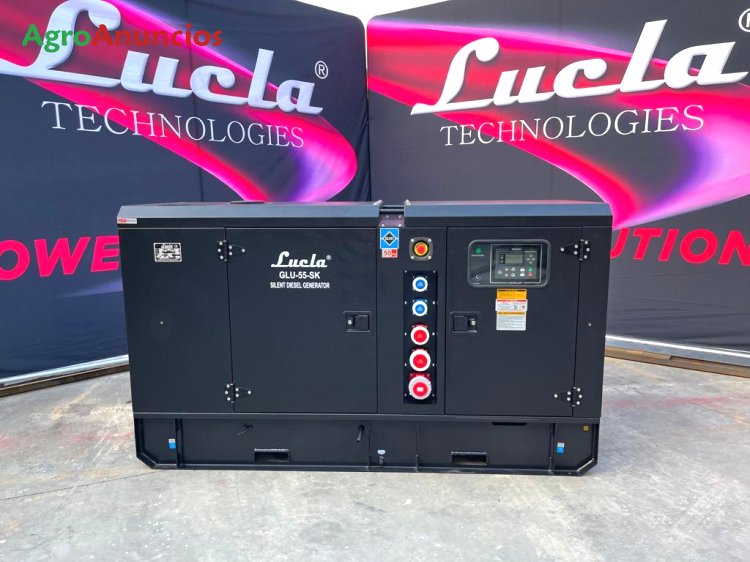

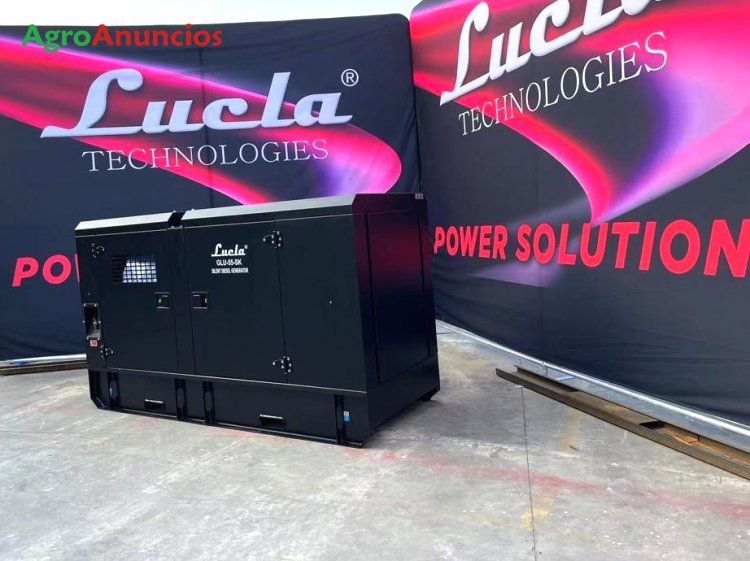

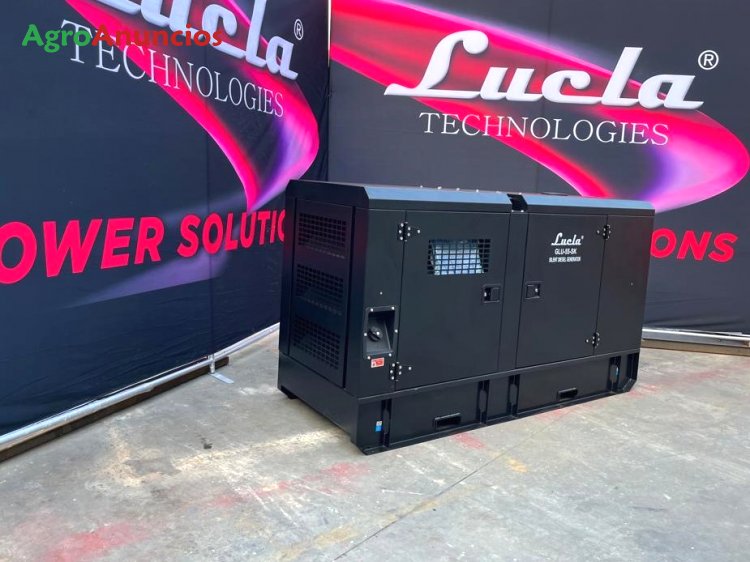

Modelo lucla glu-55sk
Technical data: rated prime power 50 kva, rated standby power 55 kva, rated voltage line to line 230/400v, rated current 72.2 a, maximum sound level db(@7m) 78.

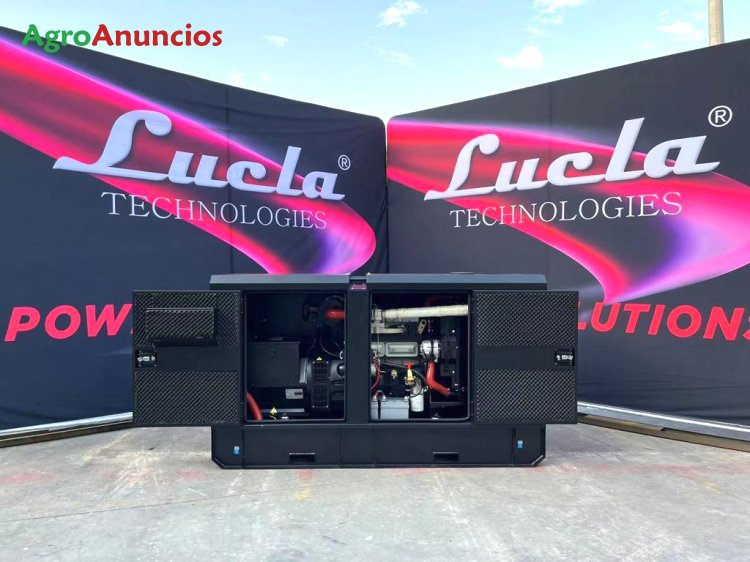

Engine -kate
Model n4105zd, air intake system: turbocharged, fuel inyection system:direct inject, nº cylinders 4, displacement 4.15, bore*stroke 105*120 mm, compression ratio 17:01, rated speed 1500 r/min, rated power 56kw, governor type mechanical, start motor 24v.
Exhause system, exhaust pipe diameter 63mm,exhaust gas temp 600, max back pressure 1.20 kpa
Air intake system, inlet pipe diameter 60mm
Fuel system: 100%load (prime power) 11l/h, 75% load (prime power) 8.25l/h, 50% load (prime power) 5.5 l/h, fuel tank capacity 120l.
Lubrication system : total system oil capacity 13l, oil consumption 2.04 (g/kw.H)
Cooling system: total coolant capacity 13 l, max top tank temperature 96ºc
Alternador – lucla model l224d tech, phase 3, voltage 230/400v, wiring type 3 phase 12 wire , y type, bearing 1, power factor (cos ) 0.8, frequency 50 hz, prime power 50 kva, exciter type brushless, self excitation, voltage regulation ±0.5%, protection grade ip23, insulation grade h, altitude 1000.
Controler smart gen, model hgm6120n, protective functions: low oil pressure, high water temperature,high /low voltage, high engine temperature and overspeed, voltaje regulator frequency regulator, emergency stop, auto starting transfer
Benavides de Órbigo, León
También te puede interesar |
|||||
|
7.500 €
